Nexis LED – Nexis LED Screens https://nexisled.com Sun, 28 Sep 2025 16:53:40 +0000 en-US hourly 1 https://wordpress.org/?v=6.9.1 Prime Series https://nexisled.com/product/prime-series/ https://nexisled.com/product/prime-series/#respond Mon, 04 Aug 2025 04:59:22 +0000 https://nexisled.com/?post_type=product&p=9431 MAJOR FEATURES
  • Outdoor led screen are Easy to maintain
  • Outdoor led screen with Slim Thickness
  • Outdoor led screen is also waterproof
  • High-Brightness Outdoor LED screen
  • Outdoor led screen featuring IP cloud control
  • Outdoor led screen with high resolution
  • Outdoor led screen featuring good heat dissipation capacity
  • Outdoor led screen are weight less
  • Outdoor led screen features Wider viewing angle
]]>
NEXIS PRIME PRO SERIES
Model Name NPS02.5 NPS03 NPS04 NPS-4.8OS NPS-5OS NPS-6OS NPS-8OS NPS-10OS
Operating Environment Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
Pixel Pitch (mm) 2.5 3 4 4.8 5 6 8 10
Cabinet Resolution 384 x 384 312 x 312 240 x 240 120 x 120 192 x 192 160 x 160 | 128 | 120 x 120 96 x 96 96 x 96
Cabinet Size (mm) 960 x 960 960 x 960 960 x 960 576 x 576 960 x 960 960 x 960 | 768 | 960 x 960 960 x 960 960 x 960
Cabinet Type Mild Steel Iron Cabinet
LED Encapsulation Make Kinglight Kinglight Kinglight Kinglight Kinglight Kinglight Kinglight Kinglight
LED Type SMD 1515 SMD 1515 SMD 2525 SMD 2525 SMD 2525 SMD 2525 SMD 3535 SMD 3535
Brightness 5500 nits 5500 nits 5000 nits 5000 nits 4500 nits 4200 nits 4500 nits 5500 nits
Driving IC ICN2153 ICN2153 ICN2153 ICN2153 ICN2153 ICN2153 ICN2153 ICN2153
Scan 1/16 1/13 1/10 1/9 1/8 1/8 1/5 1/2
Service Access Rear Rear Rear Rear Rear Rear Rear Rear
Weight (kg) 15 15 15 8 15 15|12 15 15
Viewing Angle 140/130 140/130 140/130 140/130 140/130 140/130 140/130 140/130
Module Size 320 x 160 320 x 160 320 x 160 288 x 288 320 x 160 192 x 192 320 x 160 320 x 160
Minimum View Distance (m) >=2.5 >=3.0 >=4.0 >=4.8 >=5 >=6 >=8 >=10
Refresh Rate (Hz) >=3840 >=3840 >=3840 >=3840 >=3840 >=3840 >=3840 >=3840
Power Consumption (W) 65/3 79/3 91/3 96/3 85/3 95/3 86/3 86/3
Ingress Protection IP65/IP45 IP65/IP45 IP65/IP45 IP65/IP45 IP65/IP45 IP65/IP45 IP65/IP45 IP65/IP45
MTBF (hours) 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
Life span (hours) 100000 100000 100000 100000 100000 100000 100000 100000
Certification BIS BIS BIS BIS BIS BIS BIS BIS
Preferred Applications: Rental, Fixed Indoor & Outdoor, Vehicle Mounted Screen, Dancefloor

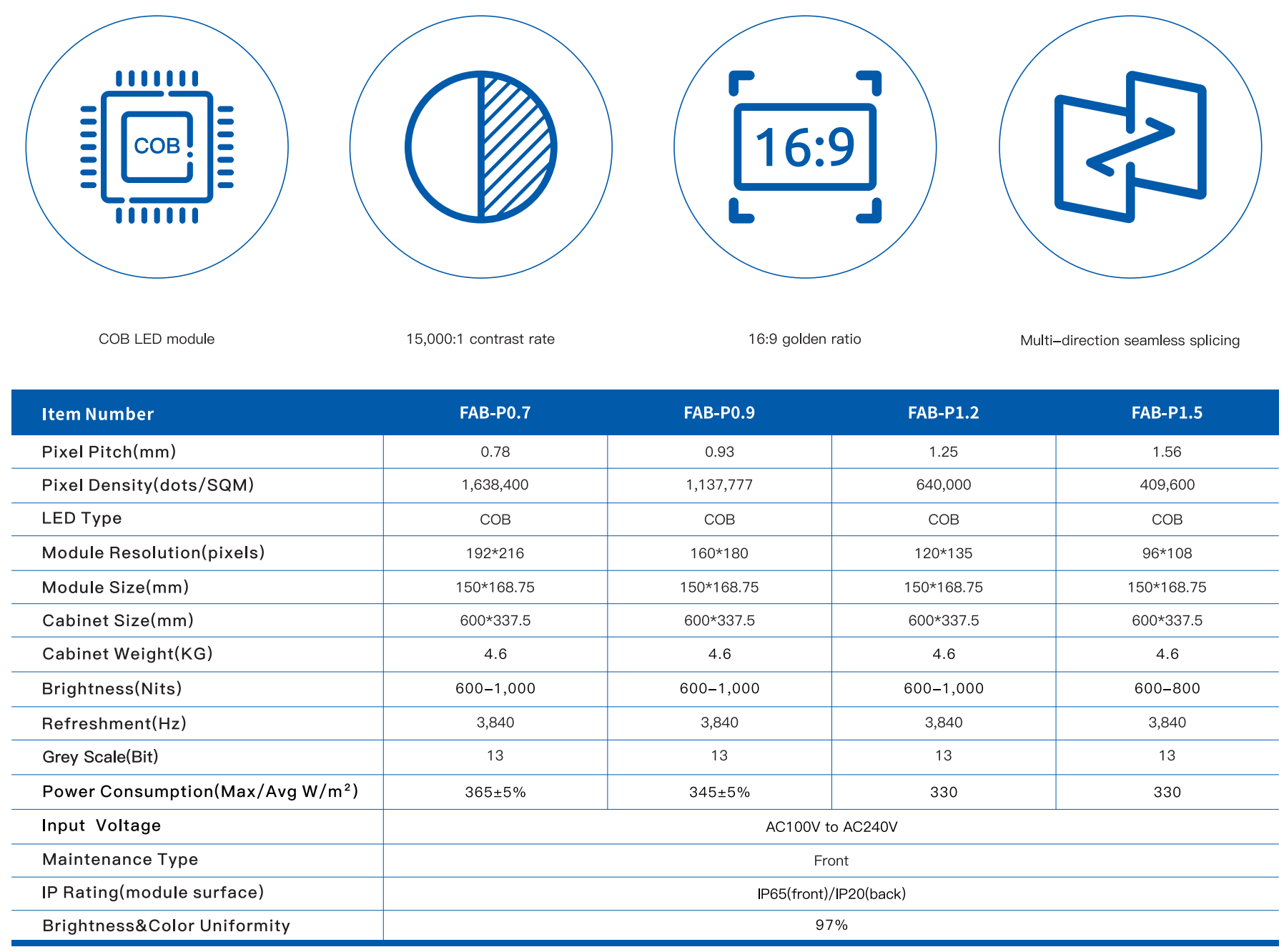

]]> https://nexisled.com/product/prime-series/feed/ 0 TPoster Series https://nexisled.com/product/tposter-series/ https://nexisled.com/product/tposter-series/#respond Wed, 30 Jul 2025 11:39:31 +0000 https://nexisled.com/?post_type=product&p=9204 https://nexisled.com/product/tposter-series/feed/ 0 TMAX Poster Series https://nexisled.com/product/tmax-poster-series/ https://nexisled.com/product/tmax-poster-series/#respond Wed, 30 Jul 2025 11:39:16 +0000 https://nexisled.com/?post_type=product&p=9203 https://nexisled.com/product/tmax-poster-series/feed/ 0 F-COB Series https://nexisled.com/product/f-cob-series/ https://nexisled.com/product/f-cob-series/#respond Wed, 30 Jul 2025 11:38:50 +0000 https://nexisled.com/?post_type=product&p=9202 Key Features:

  • COB modules for high protection.
  • Full front installation & maintenance.
  • 15,000:1 high contrast rate.
  • 16:9 golden ratio cabinet.
  • Cabinets cables hidden design.

Dimension: 600x337.5x39mm

Pixel Pitch: 0.78mm/0.93mm/1.25mm/1.56mm

Applications: Exhibition, home theater, studio, touring, concert, etc.

]]>

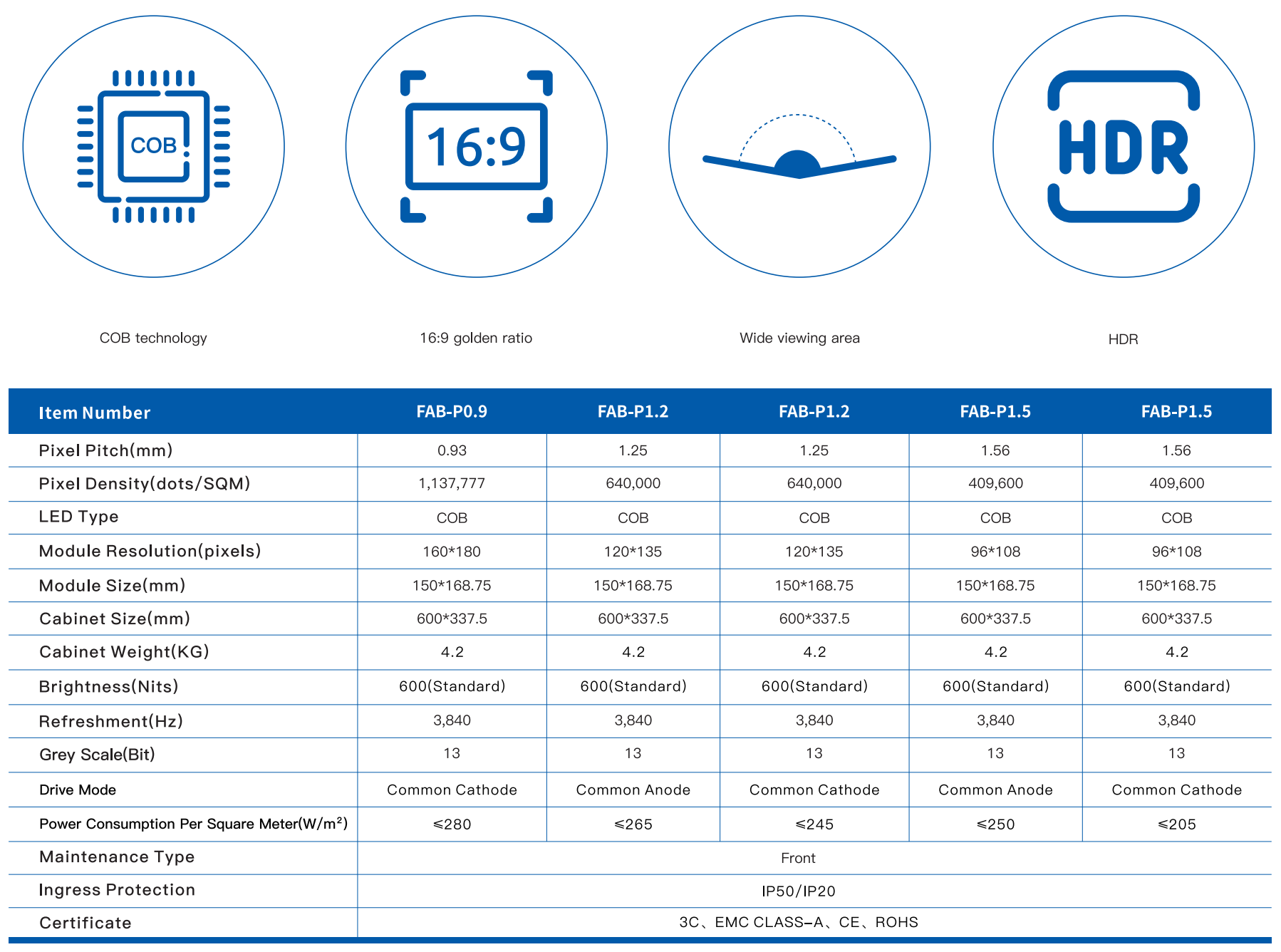

]]> https://nexisled.com/product/f-cob-series/feed/ 0 TCOB Series https://nexisled.com/product/tcob-series/ https://nexisled.com/product/tcob-series/#respond Wed, 30 Jul 2025 11:38:35 +0000 https://nexisled.com/?post_type=product&p=9201 Key Features:

  • COB modules for high protection.
  • 16: 9 golden ratio cabinet.
  • 20,000: 1 high contrast rate.
  • 27mm ultra thinness.
  • Full front installation & maintenance.
  • Brightness/voltage/temp intelligent monitoring.

Dimension: 600x337.5x29.2mm

Pixel Pitch: 0.93mm/1.25mm/1.56mm

Applications: Controlling center, conference room, shopping malls, showrooms ,etc.

]]>

]]> https://nexisled.com/product/tcob-series/feed/ 0 TMAX COB Series https://nexisled.com/product/tmax-cob-series/ https://nexisled.com/product/tmax-cob-series/#respond Wed, 30 Jul 2025 11:38:13 +0000 https://nexisled.com/?post_type=product&p=9200 Key Features: • Totally magnetic design • The most advanced technology • 16:9 golden ratio cabinet • Stable and Reliable Performance • Seamless splicing, high flatness Dimension: 600x337.5x31.3mm Pixel Pitch: 0.78mm/0.93mm/1.25mm/1.56mm Applications: Conference room, control room, shopping mall, showroom etc.]]>

]]> https://nexisled.com/product/tmax-cob-series/feed/ 0 TMAX MiP Series https://nexisled.com/product/tmax-mip-series/ https://nexisled.com/product/tmax-mip-series/#respond Wed, 30 Jul 2025 11:37:52 +0000 https://nexisled.com/?post_type=product&p=9199 Key Features: • World's smallest Micro LED chip: 34x58x7.5um. • Maximized blackness area: 99.03%. • Industry-leading contrast ratio: 100,000:1. • Exceptional viewing experience: 175°. • Color accuracy, no shift. • Energy saving 40%. Dimension: 600x337.5x31.1 mm Pixel pitch: 0.7mm/0.9mm Applications: Commercial presentation, digital art, home theater, etc.]]>

]]> https://nexisled.com/product/tmax-mip-series/feed/ 0 Spider Series[Mini 4in1 LED] https://nexisled.com/product/spider-seriesmini-4in1-led/ https://nexisled.com/product/spider-seriesmini-4in1-led/#respond Tue, 22 Jul 2025 07:05:48 +0000 https://nexisled.com/?post_type=product&p=8886 Indoor Rental LED Display Screen Solution Dimension: 500*500*71mm Pixel Pitch Indoor: 1.95mm,2.6mm Applications: XR studios,TV stations, Exhibitions,conferences, etc. Key Features: ● Unique Mini 4in1 LED,can bear 13kg impact force per pixel. ● High contrast ratio to 10000:1. ● Reduce more effect during camera shooting. ● High brightness up to 1500nits. ● High refreshment up to 7680Hz. ● Ideal solution for XR industry.]]> Indoor Rental LED Display Screen Solution Dimension: 500*500*71mm Pixel Pitch Indoor: 1.95mm,2.6mm Applications: XR studios,TV stations, Exhibitions,conferences, etc. Key Features: ● Unique Mini 4in1 LED,can bear 13kg impact force per pixel. ● High contrast ratio to 10000:1. ● Reduce more effect during camera shooting. ● High brightness up to 1500nits. ● High refreshment up to 7680Hz. ● Ideal solution for XR industry.]]> https://nexisled.com/product/spider-seriesmini-4in1-led/feed/ 0 Master Series[Mini 4in1 LED] https://nexisled.com/product/master-seriesmini-4in1-led/ https://nexisled.com/product/master-seriesmini-4in1-led/#respond Tue, 22 Jul 2025 07:05:21 +0000 https://nexisled.com/?post_type=product&p=8885 Mini 4 in 1 LED Display  Indoor Rental Installation Dimension: 500*500*74.3mm Pixel Pitch Indoor: Mini LED 1.95mm, 2.6mm Applications: XR studios, TV stations, exhibitions,conferences, etc. Key Features: ● Unique Mini 4in1 LED,can bear 13kg impact force per pixel. ● High contrast ratio to 10000:1. ● Reduce more effect during camera shooting. ● High brightness up to 1500nits. ● High refreshment up to 7680Hz. ● Intelligent module.]]> Mini 4 in 1 LED Display  Indoor Rental Installation Dimension: 500*500*74.3mm Pixel Pitch Indoor: Mini LED 1.95mm, 2.6mm Applications: XR studios, TV stations, exhibitions,conferences, etc. Key Features: ● Unique Mini 4in1 LED,can bear 13kg impact force per pixel. ● High contrast ratio to 10000:1. ● Reduce more effect during camera shooting. ● High brightness up to 1500nits. ● High refreshment up to 7680Hz. ● Intelligent module.]]> https://nexisled.com/product/master-seriesmini-4in1-led/feed/ 0 Alpha Series[Mini 4in1 LED] https://nexisled.com/product/alpha-seriesmini-4in1-led/ https://nexisled.com/product/alpha-seriesmini-4in1-led/#respond Tue, 22 Jul 2025 07:05:04 +0000 https://nexisled.com/?post_type=product&p=8883 Indoor Rental LED Display Screen Solution

Dimension: 500*500*80mm Pixel Pitch Indoor: 1.9mm, 2.6mm Applications: XR studios,TV stations, Exhibitions,conferences, etc. Key Features: ● Magnetic panel system ● Modular design ● Support 90° seamless splicing ● Equipped with high-precision curvature locks to support multi-angle creative installation ● Front & Rear maintenance]]> Indoor Rental LED Display Screen Solution

Dimension: 500*500*80mm Pixel Pitch Indoor: 1.9mm, 2.6mm Applications: XR studios,TV stations, Exhibitions,conferences, etc. Key Features: ● Magnetic panel system ● Modular design ● Support 90° seamless splicing ● Equipped with high-precision curvature locks to support multi-angle creative installation ● Front & Rear maintenance]]> https://nexisled.com/product/alpha-seriesmini-4in1-led/feed/ 0
